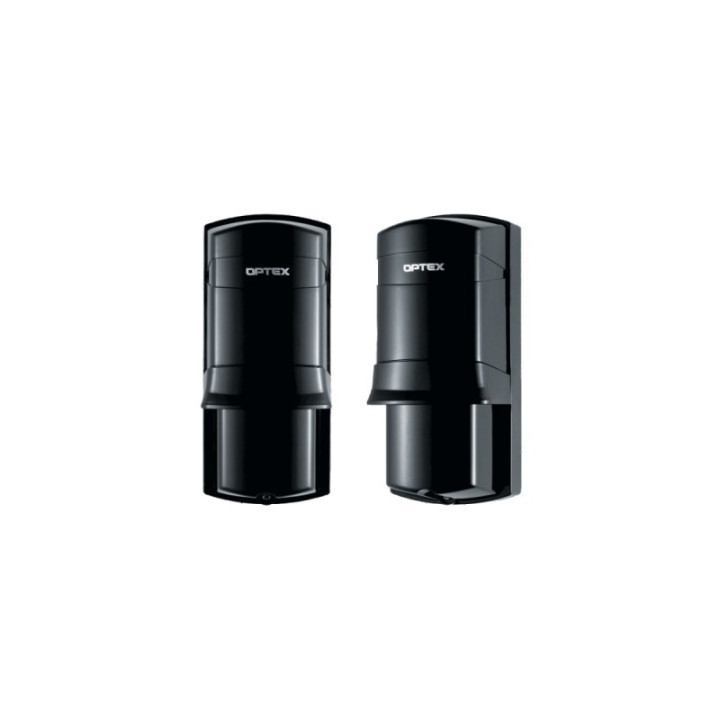

OPTEX BEAM SENSOR 70FT RANGE

Detection Range

70' (20 m) max when used outdoors
(Range doubles when used indoors)

Technology

Active infrared

Installation

Commercial, Residential

Zones

Perimeter, interior,

Maximum Distance

Arrival: 700' (200 m)

Detection Method

Infrared beam interruption detection

Method

Interruption: Selectable between 50, 100, 250, 500 ms (4 steps)

Power Supply

10.5 to 28 VDC

Current Consumption

Transmitter & Receiver: 38 mA (maximum)
T: 17 mA, R: 21 mA

Alarm Output

N.C 28 VDC, 0.2 A maximum

Alarm

Period: 2 sec ± 1 nominal

Switch

Tamper: (N.C) Open when cover is removed. 28 VDC, 0.2 A maximum

Power

Transmitter: Power On = On (Green), Power Off = Off
Alarm Indicator (Receiver): Alarm On = Red, Light receiving = Off

Alignment

Angle: ±90° horizontal, ±5° vertical

Installation

Location: Indoor / outdoor, wall / pole mounting

Protection

Internal: IP65

Humidity

Environmental: 95% maximum

Operating Temperature

-31 to 140°F (-35 to 60°C)

Weight

Transmitter & Receiver: 23 oz (652 g)

Package Weight

2.295 lb

Box Dimensions (LxWxH)

8.95 x 6.9 x 3.1"
