Unique gauge testing system (UGTS) mechanism
CE marked , brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Best available Fire ratings in its class with 5 years warranty.
Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
Welding Procedure approved by TPI with 6G.
Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.
UL listed high quality MAP 90% powder capable of fighting class A,B,C & Electrical fires.
|

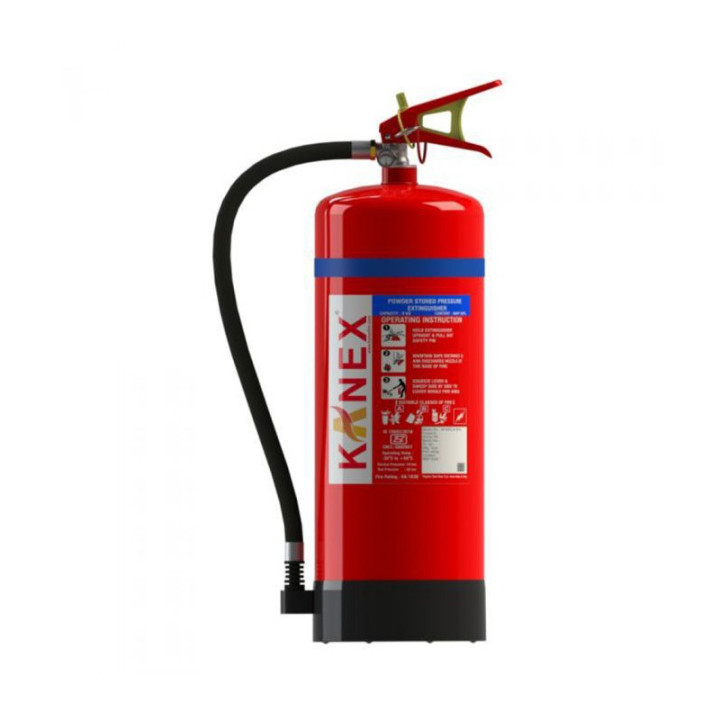

MODEL
|
KFARQ-9- UL 90%
|
|
|
|
Capacity
|
9 kg
|
Design
|
Hose & Nozzle
|
|
Fire Rating
|
6A:233B
|
Height (Approx.)
|
575 mm
|
|
Diameter (Approx.)
|
180±10 mm
|
Average Discharge Time
|
31 Sec.
|
|
Average Range of throw
|
6 m
|
Average Discharge
|
95%
|
|
Operating Temperature
|
-30 °C to +60 °C
|
Service/Max. service/Test Pressure
|
15 / 18 / 35 bar
|
|
Expelling Agent
|
Nitrogen (UHP Grade)
|
Full Weight (Approx.)
|
13.3 kg
|
|
Empty Weight (Approx.)
|
4.3 kg
|
Shipping Weight (Approx.)
|
13.6 kg
|
|
Packing Standard
|
1 in 1 - 24.5"X8.0"X8.0"
|
Mounting Bracket
|
Wall bracket
|
|
Approvals
|
BIS
|
|
