High quality Hfc236fa Clean Agent Gas.
Unique gauge testing system (UGTS) mechanism.
CE marked , brass chrome plated valve
Internally Epoxy polyester and externally pure polyester powder coating
Welding Procedure approved by TPI with 6G.
Latest BIS approved – (IS 15683:2006) and ISI marked.
Tamper seal to detect any mishandling.
Anti-corrosive Phosphate treatment of Cylinders.
Large loop stainless Pull pin.
More flexible EPDM hose.
Lever lock for better handling.
Bar Code labeling for better traceability.
Easy to maintain, recharge & service.
|

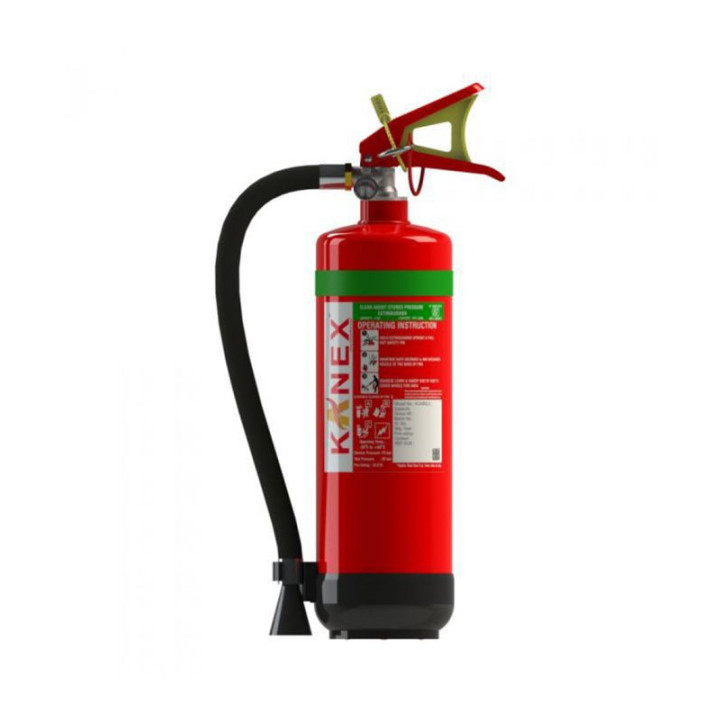

MODEL
|
KCARQ-2
|
|
|
|
Capacity
|
2 kg
|
Design
|
Nozzle
|
|
Fire Rating
|
8B
|
Height (Approx.)
|
380 mm
|
|
Diameter (Approx.)
|
106±10 mm
|
Average Discharge Time
|
14 Sec.
|
|
Average Range of throw
|
2 m
|
Average Discharge
|
95%
|
|
Operating Temperature
|
-30 °C to +55 °C
|
Service/Max. service/Test Pressure
|
15 / 18 / 35 bar
|
|
Expelling Agent
|
Nitrogen (UHP Grade)
|
Full Weight (Approx.)
|
3.4 kg
|
|
Empty Weight (Approx.)
|
1.4 kg
|
Shipping Weight (Approx.)
|
3.6 kg
|
|
Packing Standard
|
Inner- 13.75"X4.75"X4.75” Outer (4 in 1)- 16.5"X10"X10”
|
Mounting Bracket
|
Vehicle/Wall bracket
|
|
Approvals
|
BIS
|
|
