· High quality Hfc236fa Clean Agent Gas.
· Unique gauge testing system (UGTS) mechanism
· CE marked , brass chrome plated valve
· Internally Epoxy polyester and externally pure polyester powder coating
· Welding Procedure approved by TPI with 6G.
· Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
· Tamper seal to detect any mishandling.
· Anti-corrosive Phosphate treatment of Cylinders.
· Large loop stainless Pull pin.
· More flexible EPDM hose.
· Lever lock for better handling.
· Bar Code labeling for better traceability.
· Easy to maintain, recharge & service.
|

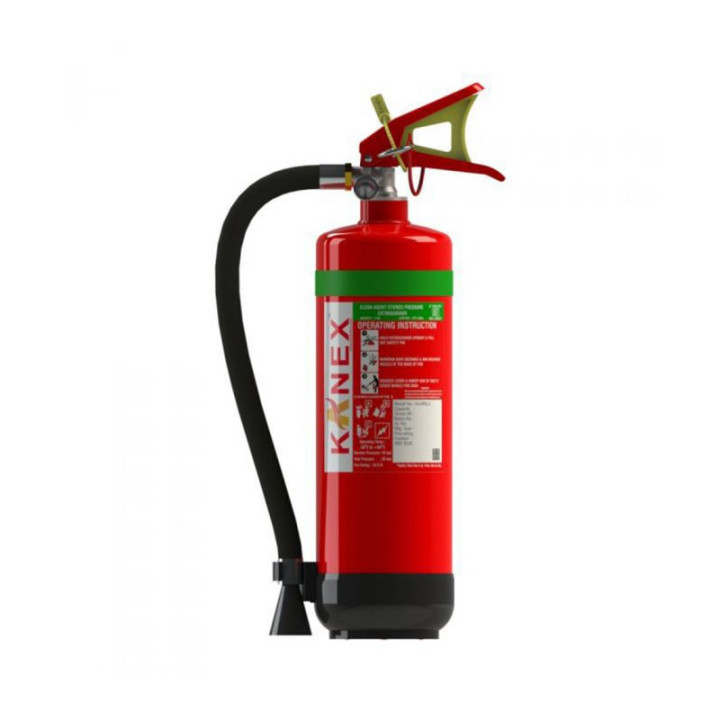

MODEL
|
KCARQ-6
|
|
|
|
Capacity
|
6 kg
|
Design
|
Hose & Nozzle
|
|
Fire Rating
|
2A:34B
|
Height (Approx.)
|
530 mm
|
|
Diameter (Approx.)
|
150±10 mm
|
Average Discharge Time
|
24 Sec.
|
|
Average Range of throw
|
5 m
|
Average Discharge
|
95%
|
|
Operating Temperature
|
-30 °C to +55 °C
|
Service/Max. service/Test Pressure
|
15 / 17 / 35 bar
|
|
Expelling Agent
|
Nitrogen (UHP Grade)
|
Full Weight (Approx.)
|
8.9 kg
|
|
Empty Weight (Approx.)
|
2.9 kg
|
Shipping Weight (Approx.)
|
9.2 kg
|
|
Packing Standard
|
2 in 1- 21"X6.75"X14.10”
|
Mounting Bracket
|
Wall bracket
|
|
Approvals
|
BIS
|
|
|
