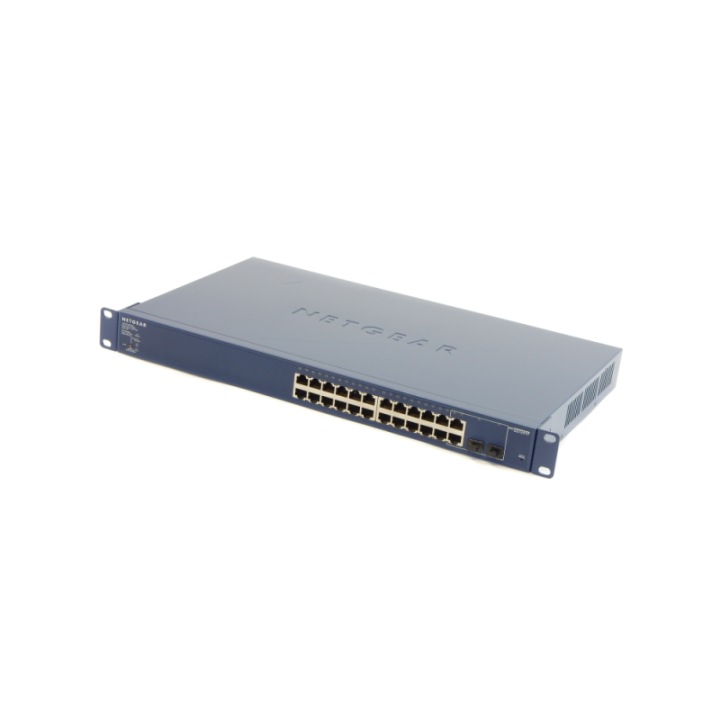

24- PORT GIGABIT ETHERNET POE SMART SWITCH WITH 2 SFP PORTS

GS724TPv2 Specifications

Product Specifications

10M/100M/1G RJ-45 copper ports

24

PoE / PoE+ ports

24 PoE+ (190W PoE budget)

1G SFP (fiber) ports

2 (dedicated)

Performance Specifications

CPU

500 Mhz MIPS-4KEc CPU
128MB RAM 32MB SPI FLASH

Packet buffer memory (Dynamically shared across only used ports)

0.5 MB

Forwarding modes

Store-and-forward

Bandwidth

52 Gbps

Priority queues

8

Priority queuing

Weighted Round Robin (WRR) and Strict Priority

MAC Address database size (48-bit MAC addresses)

8K

Multicast groups

128

Number of VLANs

64

Number of DHCP snooping bindings

256

Access Control Lists (ACLs)

100 shared for MAC, IP and UDP/TCP ACLs (ingress)

Packet forwarding rate (64 byte packet size) (Mpps)

38.68

Jumbo frame support

Up to 9K packet size

Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)

32.4 dBA

Mean Time Between Failures (MTBF) @ 25°C

1,051,375 hours

100M Copper Latency(64-byte; 1518-byte; 9216-byte frames)

6.38µs ; 6.267µs ; 6.059µs

1G Copper Latency(64-byte; 1518-byte; 9216-byte frames)

3.749µs ; 4.675µs ; 3.762µs

1G Fiber Latency (64-byte; 1518-byte; 9216-byte frames)

3.129µs ; 4.213µs ; 4.197µs

L2 Services - VLANs

IEEE 802.1Q VLAN tagging

Yes

Auto-VoIP VLAN / Auto-Voice VLAN

Yes, manuel or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters

Physical Specifications

Dimensions

440 x 204 x 43 mm (17.3 x 8 x 1.7 in)

Weight

3.15 kg (6.96 lb)

Power Consumption

Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts)

228.53 W

Max power without PoE (worst case, all ports used, line-rate traffic) (Watts)

21.62 W

Heat Dissipation (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)

780.20 BTU/hr

Heat Dissipation without PoE (worst case, all ports used, line-rate traffic) (BTU/hr)

73.8 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

Yes (deactivated by default)

Short Cable Power Reduction

Yes (deactivated by default)

Auto Power Down

Yes (deactivated by default)

Fan

2

Environmental Specifications

Operating Power

Internal 100-240VAC 50-60Hz

Operating Temperature

0° to 50°C (32° to 122°F)

Operating Humidity

90% maximum relative humidity (RH), non-condensing

Operating Altitude

10,000ft (3,000m) maximum

Storage Temperature

–20° to 70°C (– 4° to 158°F)

Storage Humidity

95% maximum relative humidity, non-condensing

Storage Altitude

10,000ft (3,000m) maximum

Electromagnetic Emissions and Immunity

Certifications

• CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000- 3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010

• VCCI : VCCI-CISPR 32:2016, Class A

• RCM: AS/NZS CISPR 32:2013 Class A

• CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)

• FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014

• ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014

• BSMI: CNS 13438 Class A

Safety

Certifications

• CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013

• UL listed (UL 1950)/cUL IEC 950/EN 60950

• CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

• RCM (AS/NZS) 60950.1:2015

• CCC (China Compulsory Certificate): GB4943.1-2011; YD/ T993-1998; GB/T9254-2008 (Class A)

• BSMI: CNS 14336-1
