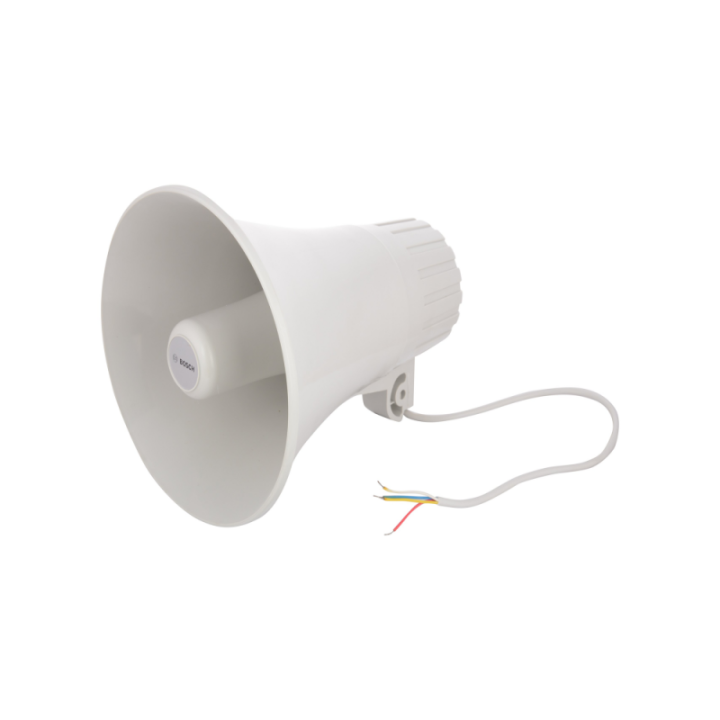

15 W HORN SPEAKER

Maximum Power

22.5 W

Rated Power

15W

Sound Pressure level at 15 W / 1 W ( 1 KHz at 1m)

115 / 103 dB (SPL)

Effective frequency range

500Hz to 5kHz

Opening Angle at 1 KHz / 4 KHz (-6 dB)

130°/ 50°

Rated Voltage

100 V

Rated impedance

667 ohm

Mechanics Diameter (H x W x D)

235 x 190 x 225 mm (9.25 x 7.48 x 8.85 in)

Maximum depth

70 mm

Weight

1.5 kg

Operating temperature

-25 °C to +55 °C

Storage temperature

-40 ºC to +70 ºC
