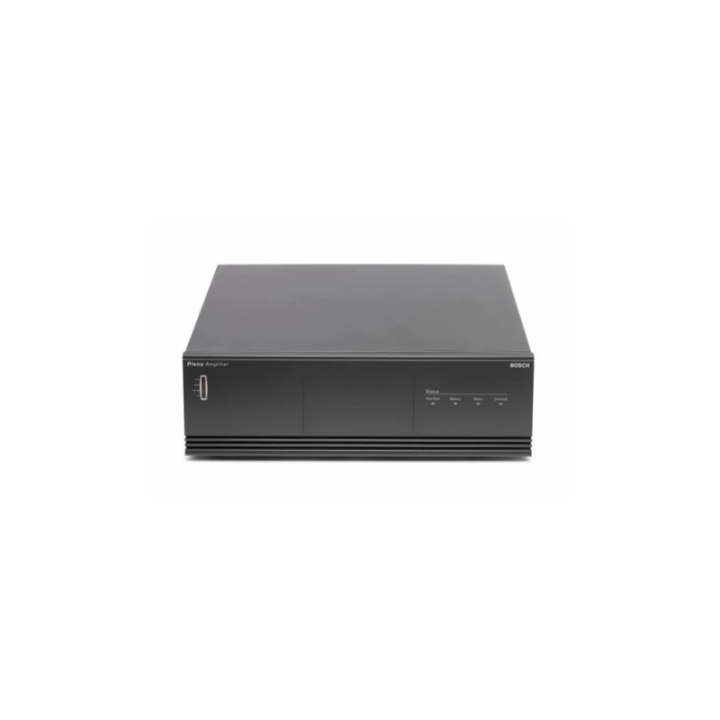

• 120W BOOSTER AMPLIFIER

120W BOOSTER AMPLIFIER

₹30,000 (Save 23.6%)
₹22,920
No tax

        Wide range of power amplifier from 120W, 240W and 480W

·        Multiple outputs – 70 V / 100 V and 8/4 ohm

·        Temperature controlled forced front to back ventilation, directly stackable

·        Mains, battery back-up, and pilot tone supervision

·        Dual inputs with priority switching (LBD1938)

Product

LBD1930/00

Input Voltage

230VAC ±10% at 50/60Hz or

24VDC ±10%

Inrush Current

8A at 230 VAC, 6A at 24 VDC

Performance

Rated Output (RMS)

120W

Power reduction on backup power

-1 dB

Frequency response

60 Hz to 18 kHz (+1 / -3 dB at

-10 dB ref. rated output)

Distortion

<1% at rated output, 1 kHz

S/N (flat at max volume)

> 65 dB

Power consumption

Max power consumption

400 VA

Mains operation

Max power

274W

-3 dB

193W

Pilot tone

41W

Idle

18W

24V DC operation

Max power

7.0A (168W)

-3 dB

6.0A (144W)

Pilot tone

0.9A (22W)

Idle

0.1A (2.4W)

Line Input s

2 x

  • Brand
  • Reference
    LBD1930
