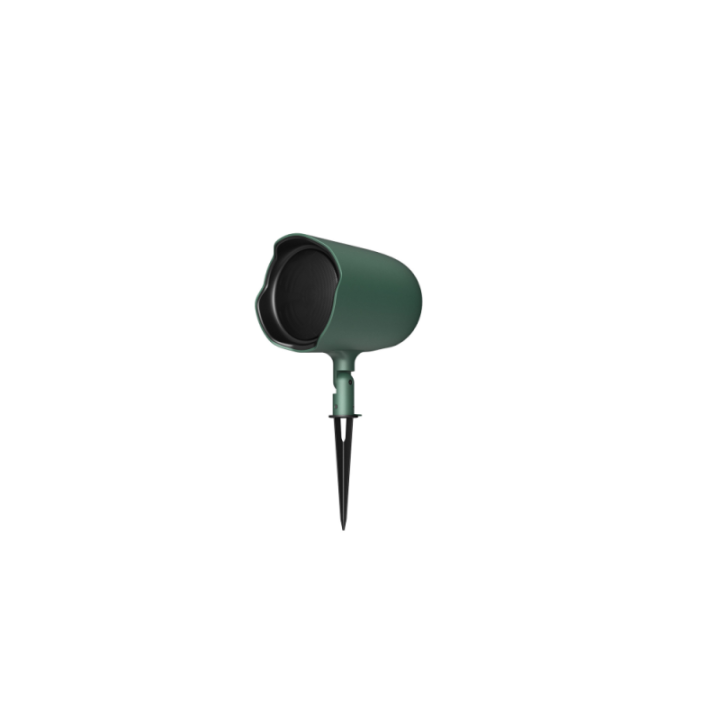

• GARDEN SPEAKER GROUND-STAKE LANDSCAPE LOUDSPEAKER

GARDEN SPEAKER GROUND-STAKE LANDSCAPE LOUDSPEAKER

₹25,000 (Save 25.32%)
₹18,670
No tax

      Transducers: 83 mm (3”) woofer with polypropylene cone and 25 mm (1”) voice coil on Kapton voice coil former; 20 mm (0.8 in) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former.

·        Frequency range: 74 Hz – 20 kHz

·        Power handling (at 8Ω setting): 30W continuous pink noise, 60W continuous program

·        IP66 rated against water and dust ingress

·        Multi-tap 15W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems

·        Bottom drip hole provides drainage for drivers

·        Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers

·        Includes tap selector located on bottom of speaker, away from water incursion

·        Available in hunter green or tan finish

Frequency Range (-10dB)

74 Hz – 20 kHz

Frequency Response (+/-3 dB)

120 Hz – 15 kHz

Power Rating

60 W Continuous Program (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (2 hrs)
20 W (80 W Peak), Continuous Pink Noise (100 hrs)

Sensitivity

84 dB (43 Hz - 110 Hz)

Maximum SPL

103 dB peak (95 dB continuous, 2 hr) @ 1m

Coverage Pattern

90° conical

Nominal Impedance

8 Ω (at 8Ω tap)

Transformer Taps

70V: 15 W, 7.5 W, 3.75 W
100V: 15 W, 7.5 W

Drivers

83 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former

20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former

Terminals

Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)

Enclosure Material

Polycarbonate + ABS, UL94V-0 flammability rated

Color

Pine Green RAL 6028, or Beige Grey RAL 7006

Dimensions

Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 (17.0 in) with ground stake base

Net Weight

1.7 kg (3.8 lbs)

Included Accessories

(1) Ground Stake Bracket; (1) L-Bracket

Directivity Factor (Q)

7.9

Directivity Index (dB)

9 dB

  • Brand
  • Reference
    GSF3
